XGC 300t Crawler Crane Technical Specifications
Crawler crane models: XGC 300t
Max rated lifting capacity: 300t
Maximum lifting moment: 1865t.m
Main boom working conditions
Main boom working condition lifting table
Table of main boom working condition without arm end pulley (HB/1)
|
HB/1
|
Counterweight combination: turntable counterweight (t) + vehicle body counterweight (t)
|
|
Main boom assembly
|
115+40
|
110+40
|
100+40
|
90+40
|
|
HB19
|
◎
|
◎
|
◎
|
◎
|
|
HB22
|
◎
|
◎
|
◎
|
◎
|
|
HB25
|
◎
|
◎
|
◎
|
◎
|
|
HB28
|
◎
|
◎
|
◎
|
◎
|
|
HB31
|
◎
|
◎
|
◎
|
◎
|
|
HB34
|
◎
|
◎
|
◎
|
◎
|
|
HB37
|
◎
|
◎
|
◎
|
◎
|
|
HB40
|
◎
|
◎
|
◎
|
◎
|
|
HB43
|
◎
|
◎
|
◎
|
◎
|
|
HB46
|
◎
|
◎
|
◎
|
◎
|
|
HB49
|
◎
|
◎
|
◎
|
◎
|
|
HB52
|
◎
|
◎
|
◎
|
◎
|
|
HB55
|
◎
|
◎
|
◎
|
◎
|
|
HB58
|
◎
|
◎
|
◎
|
◎
|
|
HB61
|
◎
|
◎
|
◎
|
◎
|
|
HB64
|
◎
|
◎
|
◎
|
◎
|
|
HB67
|
◎
|
◎
|
◎
|
◎
|
|
HB70
|
◎
|
◎
|
◎
|
◎
|
|
HB73
|
◎
|
◎
|
◎
|
◎
|
|
HB76
|
◎
|
◎
|
◎
|
●
|
|
*HB79
|
◎
|
◎
|
◎
|
●
|
|
*HB82
|
◎
|
◎
|
●
|
●
|
|
*HB85
|
◎
|
●
|
●
|
●
|
|
*HB88
|
●
|
●
|
●
|
×
|
|
*HB91
|
●
|
●
|
●
|
×
|
|
*HB94
|
●
|
●
|
×
|
×
|
Notes: 1. “◎” - can raise the arm. “●” - needs wedges to assist in raising the arm. “×” - cannot raise the arm, not allowed.
2. “*” The main arm combination requires a 1.33m waist rope.
3. When raising the arm, please place the track drive wheel behind the vehicle body.
Boom lifting table with boom end pulley (HBS/1 & HBS/2)
|
HBS/1 & HBS/2
|
Counterweight combination: turntable counterweight (t) + vehicle body counterweight (t)
|
|
Main boom assembly
|
115+40
|
110+40
|
100+40
|
90+40
|
|
HB25
|
◎
|
◎
|
◎
|
◎
|
|
HB28
|
◎
|
◎
|
◎
|
◎
|
|
HB31
|
◎
|
◎
|
◎
|
◎
|
|
HB34
|
◎
|
◎
|
◎
|
◎
|
|
HB37
|
◎
|
◎
|
◎
|
◎
|
|
HB40
|
◎
|
◎
|
◎
|
◎
|
|
HB43
|
◎
|
◎
|
◎
|
◎
|
|
HB46
|
◎
|
◎
|
◎
|
◎
|
|
HB49
|
◎
|
◎
|
◎
|
◎
|
|
HB52
|
◎
|
◎
|
◎
|
◎
|
|
HB55
|
◎
|
◎
|
◎
|
◎
|
|
HB58
|
◎
|
◎
|
◎
|
◎
|
|
HB61
|
◎
|
◎
|
◎
|
◎
|
|
HB64
|
◎
|
◎
|
◎
|
●
|
|
HB67
|
◎
|
◎
|
◎
|
●
|
|
HB70
|
◎
|
◎
|
◎
|
●
|
|
HB73
|
◎
|
◎
|
●
|
●
|
|
HB76
|
◎
|
●
|
●
|
●
|
|
* HB79
|
●
|
●
|
●
|
●
|
|
* HB82
|
●
|
●
|
●
|
×
|
|
* HB85
|
●
|
●
|
×
|
×
|
|
* HB88
|
●
|
×
|
×
|
×
|
Notes: 1. “◎”--Can raise the arm. “●”--Need to use wedges to assist in raising the arm. “×”--Cannot raise the arm, not allowed to use. .
2. “*” The main arm combination requires a 1.33m waist rope.
3. When raising the arm, please place the crawler drive wheel behind the vehicle body.
|
|

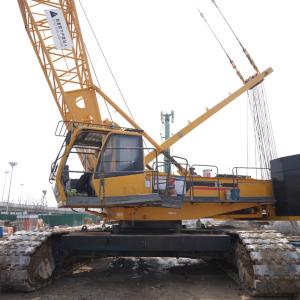

Used 300t Crawler Crane With Both Quality And Price Guarantee Images
|
