Hydraulic 220T Used Crawler Crane For Emergency Rescue Work 1239t.M Lifting Moment

Name: Hydraulic 220T Used Crawler Crane For Emergency Rescue Work 1239tM Lifting Moment
Brand: XCMG
Price: 1 USD

Brand Name : XCMG

Model Number : XLC220

Place of Origin : China

MOQ : One Crane

Price : Negotiable Price

Payment Terms : L/C,T/T

Supply Ability : Supply According to Customer Needs

Delivery Time : According to Order Confirmation

Packaging Details : Packing According to Customer Requirements

Control System : Hydraulic

Counterweight : Up to 80 tons

Travel Speed : Up to 80 km/h

Slewing System : Hydraulic

Optional Attachments : Jib, winch, fly jib, hook block

Boom Length : Up to 100 meters

Cab Features : Air-conditioning, adjustable seat, ergonomic controls

Lifting Capacity : Up to 1,200 tons

Maximum Tip Height : Up to 200 meters

Engine Power : Up to 600 hp

Contact Now

220T Crawler Crane Can Be Used For Different Types Of Projects, Easily Realizing The Construction Industry, Oil Industry, Emergency Rescue Work

XLC220 Crawler Crane Technical Specifications

Crawler crane models: XLC220
Max rated lifting capacity: 220t
Max lifting moment: 1239t.m

Typical working conditions

Main boom working condition_main boom main hook characteristics without arm end pulley (HB/1)

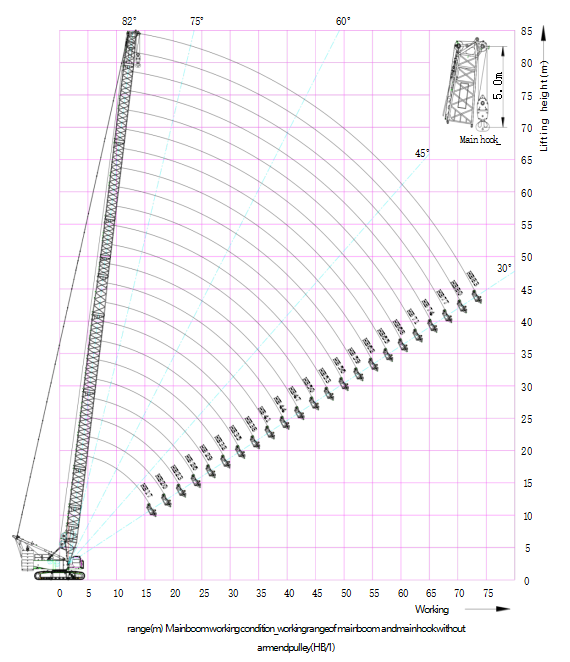

Main boom working condition_working range of main boom and main hook without arm end pulley (HB/1)

Hydraulic 220T Used Crawler Crane For Emergency Rescue Work 1239t.M Lifting Moment

Main boom working condition_No arm end pulley HB/1_75t+21t main boom main hook performance

Operating radius(m)	Main boom length(m)
Operating radius(m)	17	20	23	26	29	32	35	38	41	44	47	50
5	220.0
6	196.0	195.5	193.5	179.5
7	177.0	176.0	174.5	173.5	167.9	156.1	144.2
8	154.5	154.0	153.5	151.9	147.3	144.7	138.2	127.2	115.3	111.2
9	136.8	136.0	135.2	133.4	132.5	129.2	126.0	122.9	115.3	111.2	107.2
10	116.7	117.1	117.4	117.5	116.6	114.0	111.4	108.9	106.5	103.2	102.0	99.8
12	88.6	89.1	89.3	89.4	89.5	89.5	89.5	88.4	86.7	85.1	83.4	81.9
14	70.9	71.3	71.6	71.7	71.8	71.8	71.7	71.7	71.6	71.5	70.3	69.1
16	58.5	59.1	59.4	59.5	59.6	59.6	59.5	59.4	59.3	59.2	59.1	59.0
18		50.1	50.4	50.6	50.6	50.6	50.6	50.5	50.4	50.3	50.1	50.0
20			43.6	43.7	43.8	43.8	43.8	43.7	43.6	43.4	43.3	43.2
22				38.3	38.4	38.4	38.4	38.3	38.2	38.1	37.9	37.8
24				33.9	34.0	34.1	34.0	33.9	33.8	33.7	33.6	33.4
26					30.4	30.4	30.4	30.3	30.2	30.1	30.0	29.8
28						27.4	27.4	27.3	27.2	27.1	26.9	26.8
30							24.8	24.7	24.6	24.5	24.4	24.2
32							22.5	22.5	22.4	22.3	22.1	22.0
34								20.5	20.4	20.3	20.2	20.0
36									18.8	18.6	18.5	18.3
38										17.2	17.1	16.9
40										15.7	15.6	15.4
42											14.4	14.2
44												13.1
Magnification	18	18	16	14	13	12	11	10	9	9	8	8

Notes:

1.The actual lifting capacity must be deducted from the rated lifting capacity in this table by the weight of the hook, sling and wire rope wrapped around the hook and boom head.

2.The rated load in the table is the value when the load is lifted slowly and steadily on a horizontal hard ground and the non-travel lifting work is performed.

3.The rated load in the table is based on the calculation value of the main boom section without the tower arm back plate, tower arm guide pulley and arm end single pulley.

4.The tower arm back plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.

5.The waist rope needs to be used for the combination at the "*" when the main boom length exceeds 71m, and it is recommended to use a wedge to assist the boom when the main boom length exceeds 74m.
